Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 2.025 — 2.05 GeV | |
| Ebeam : | 5.754 GeV |
|

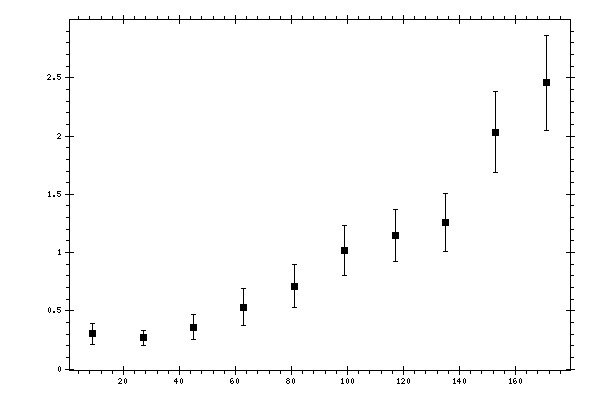

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.3013 | 0.0384 | 0.0802 | 0.0889 |
| 27 | 0.2674 | 0.0307 | 0.057 | 0.0648 |
| 45 | 0.3605 | 0.0446 | 0.1006 | 0.1101 |
| 63 | 0.5316 | 0.033 | 0.1565 | 0.16 |
| 81 | 0.7104 | 0.0514 | 0.176 | 0.1834 |
| 99 | 1.0157 | 0.0489 | 0.2111 | 0.2167 |
| 117 | 1.1444 | 0.0569 | 0.218 | 0.2253 |
| 135 | 1.2577 | 0.0829 | 0.2319 | 0.2462 |
| 153 | 2.0331 | 0.1097 | 0.3303 | 0.3481 |
| 171 | 2.4578 | 0.2063 | 0.3498 | 0.4061 |
