Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 2.05 — 2.075 GeV | |
| Ebeam : | 5.754 GeV |
|

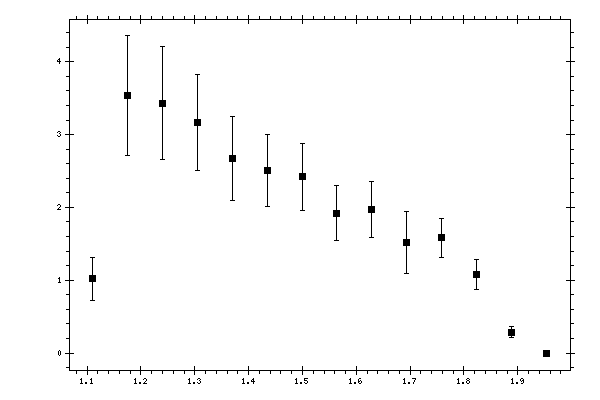

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.110256 | 1.0202 | 0.0974 | 0.2771 | 0.2937 |
| 1.175084 | 3.5322 | 0.2949 | 0.7692 | 0.8238 |
| 1.239911 | 3.4319 | 0.3173 | 0.7102 | 0.7778 |
| 1.304739 | 3.166 | 0.3002 | 0.5888 | 0.6609 |
| 1.369567 | 2.6732 | 0.2882 | 0.5005 | 0.5775 |
| 1.434394 | 2.5038 | 0.2104 | 0.4512 | 0.4978 |
| 1.499222 | 2.4211 | 0.2042 | 0.4114 | 0.4593 |
| 1.56405 | 1.9227 | 0.1549 | 0.3405 | 0.3741 |
| 1.628878 | 1.97 | 0.2067 | 0.3232 | 0.3836 |
| 1.693705 | 1.5189 | 0.3446 | 0.241 | 0.4205 |
| 1.758533 | 1.5841 | 0.133 | 0.232 | 0.2674 |
| 1.823361 | 1.0735 | 0.1283 | 0.1596 | 0.2048 |
| 1.888188 | 0.2877 | 0.0486 | 0.0618 | 0.0786 |
| 1.953016 | 0 | 0.0013 | 0 | 0.0013 |
