Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 2.05 — 2.075 GeV | |
| Ebeam : | 5.754 GeV |
|

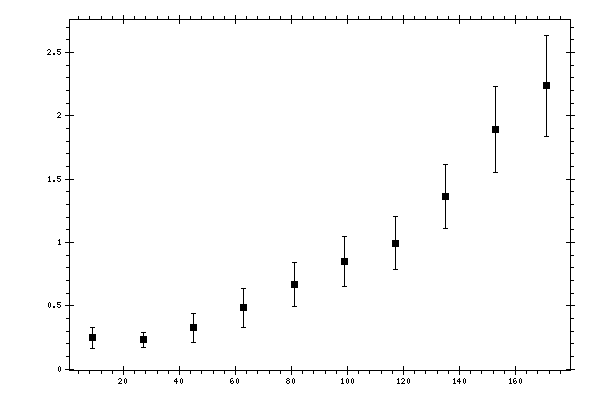

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.2469 | 0.0367 | 0.0735 | 0.0822 |
| 27 | 0.2294 | 0.0275 | 0.0543 | 0.0609 |
| 45 | 0.3254 | 0.037 | 0.1103 | 0.1163 |
| 63 | 0.4822 | 0.0316 | 0.147 | 0.1504 |
| 81 | 0.6684 | 0.0333 | 0.1694 | 0.1726 |
| 99 | 0.8485 | 0.0443 | 0.1915 | 0.1966 |
| 117 | 0.9952 | 0.065 | 0.1964 | 0.2069 |
| 135 | 1.3619 | 0.0736 | 0.2403 | 0.2513 |
| 153 | 1.8934 | 0.1025 | 0.3217 | 0.3376 |
| 171 | 2.2365 | 0.1961 | 0.3456 | 0.3974 |
