Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 2.075 — 2.1 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

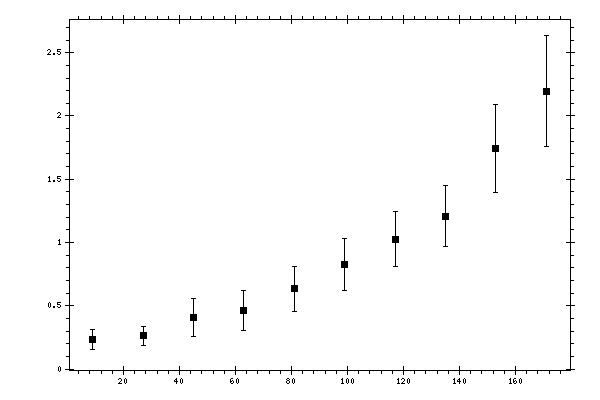

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.2339 | 0.0354 | 0.0737 | 0.0818 |
| 27 | 0.2618 | 0.0386 | 0.0644 | 0.075 |
| 45 | 0.4081 | 0.0399 | 0.1443 | 0.1497 |
| 63 | 0.4628 | 0.0402 | 0.151 | 0.1563 |
| 81 | 0.6345 | 0.0389 | 0.1737 | 0.178 |
| 99 | 0.824 | 0.0477 | 0.1998 | 0.2054 |
| 117 | 1.0262 | 0.0567 | 0.2076 | 0.2152 |
| 135 | 1.2093 | 0.0642 | 0.2327 | 0.2414 |
| 153 | 1.7428 | 0.1084 | 0.3319 | 0.3492 |
| 171 | 2.1966 | 0.2106 | 0.3839 | 0.4379 |
