Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.4 — 1.425 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

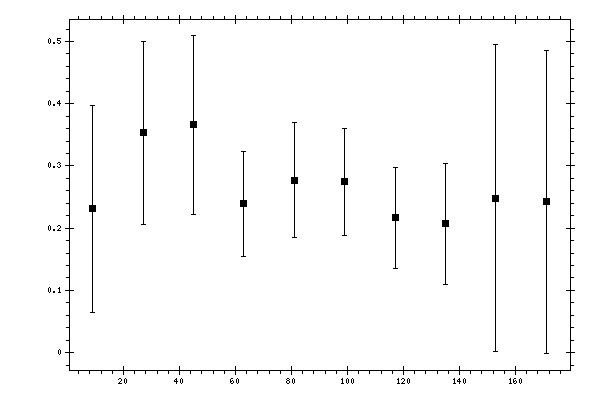

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.231 | 0.0468 | 0.1191 | 0.1668 |
| 27 | 0.353 | 0.0482 | 0.0999 | 0.1473 |
| 45 | 0.3659 | 0.0442 | 0.0983 | 0.1432 |
| 63 | 0.239 | 0.0336 | 0.078 | 0.0849 |
| 81 | 0.2774 | 0.0389 | 0.0841 | 0.0926 |
| 99 | 0.2745 | 0.0371 | 0.0777 | 0.0861 |
| 117 | 0.2167 | 0.0241 | 0.0778 | 0.0815 |
| 135 | 0.2069 | 0.0302 | 0.0922 | 0.097 |
| 153 | 0.2484 | 0.0023 | 0.1758 | 0.2462 |
| 171 | 0.2424 | 0.0023 | 0.1716 | 0.2432 |
