Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.4 — 1.425 GeV | |
| Ebeam : | 5.754 GeV |
|

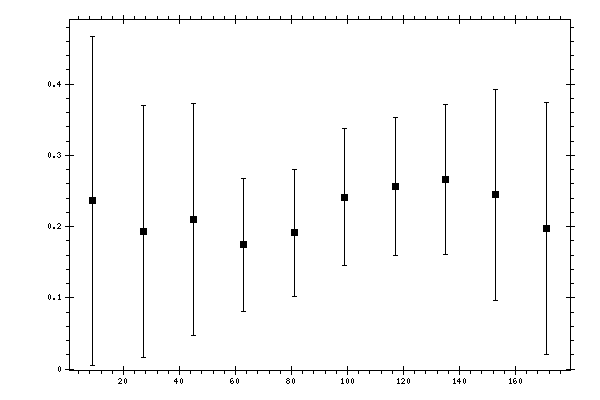

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.2359 | 0.0161 | 0.1604 | 0.2309 |
| 27 | 0.1933 | 0.0149 | 0.1253 | 0.1769 |
| 45 | 0.2103 | 0.0199 | 0.1101 | 0.1628 |
| 63 | 0.1741 | 0.0202 | 0.091 | 0.0932 |
| 81 | 0.1911 | 0.0237 | 0.086 | 0.0892 |
| 99 | 0.2412 | 0.0285 | 0.092 | 0.0963 |
| 117 | 0.2563 | 0.0292 | 0.0928 | 0.0973 |
| 135 | 0.2658 | 0.0332 | 0.0994 | 0.1048 |
| 153 | 0.2445 | 0.0344 | 0.1052 | 0.1482 |
| 171 | 0.1971 | 0.0206 | 0.1292 | 0.1768 |
