Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.425 — 1.45 GeV | |
| Ebeam : | 5.754 GeV |
|

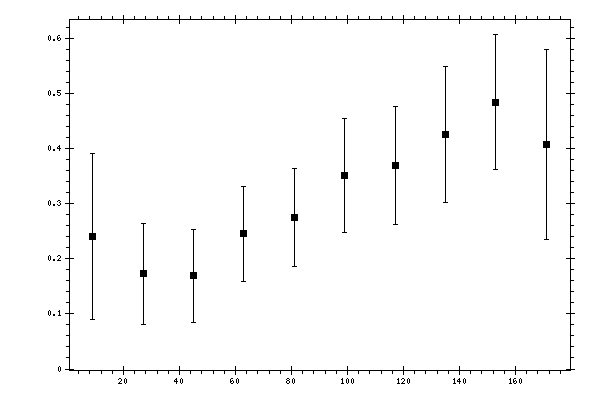

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.2402 | 0.0344 | 0.1472 | 0.1511 |
| 27 | 0.1731 | 0.0221 | 0.0892 | 0.0919 |
| 45 | 0.1696 | 0.0351 | 0.077 | 0.0846 |
| 63 | 0.246 | 0.0299 | 0.0809 | 0.0862 |
| 81 | 0.2753 | 0.0381 | 0.0799 | 0.0885 |
| 99 | 0.3515 | 0.0428 | 0.094 | 0.1033 |
| 117 | 0.3706 | 0.0432 | 0.0981 | 0.1072 |
| 135 | 0.4262 | 0.0528 | 0.1121 | 0.1239 |
| 153 | 0.4848 | 0.0698 | 0.1314 | 0.1231 |
| 171 | 0.4078 | 0.0881 | 0.1479 | 0.1721 |
