Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.475 — 1.5 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

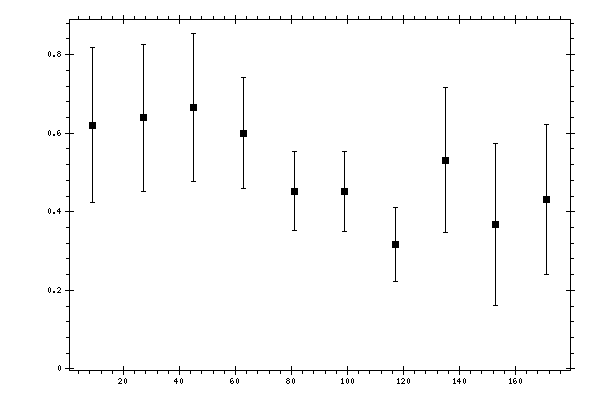

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.6203 | 0.1002 | 0.1386 | 0.1971 |
| 27 | 0.6389 | 0.0698 | 0.1245 | 0.1872 |
| 45 | 0.6649 | 0.0651 | 0.1316 | 0.1886 |
| 63 | 0.6003 | 0.0749 | 0.119 | 0.1406 |
| 81 | 0.4523 | 0.0454 | 0.0899 | 0.1007 |
| 99 | 0.4513 | 0.0485 | 0.0904 | 0.1026 |
| 117 | 0.3173 | 0.0645 | 0.0683 | 0.0939 |
| 135 | 0.5313 | 0.1456 | 0.1122 | 0.1838 |
| 153 | 0.368 | 0.0035 | 0.2484 | 0.2064 |
| 171 | 0.4312 | 0.0024 | 0.291 | 0.1908 |
