Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.475 — 1.5 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

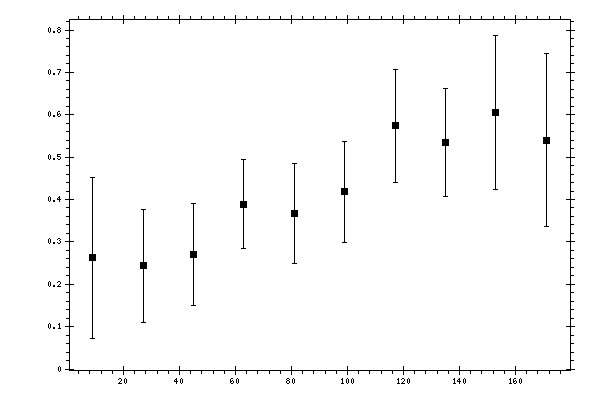

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.2621 | 0.0403 | 0.1266 | 0.189 |
| 27 | 0.2434 | 0.0409 | 0.0862 | 0.1328 |
| 45 | 0.2695 | 0.0373 | 0.0826 | 0.1202 |
| 63 | 0.3891 | 0.0478 | 0.0933 | 0.1048 |
| 81 | 0.3663 | 0.0834 | 0.0835 | 0.118 |
| 99 | 0.4186 | 0.0767 | 0.0911 | 0.1191 |
| 117 | 0.574 | 0.0608 | 0.1181 | 0.1329 |
| 135 | 0.5342 | 0.0614 | 0.1113 | 0.1272 |
| 153 | 0.6062 | 0.0679 | 0.129 | 0.1817 |
| 171 | 0.5403 | 0.0917 | 0.1482 | 0.2051 |
