Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.5 — 1.525 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

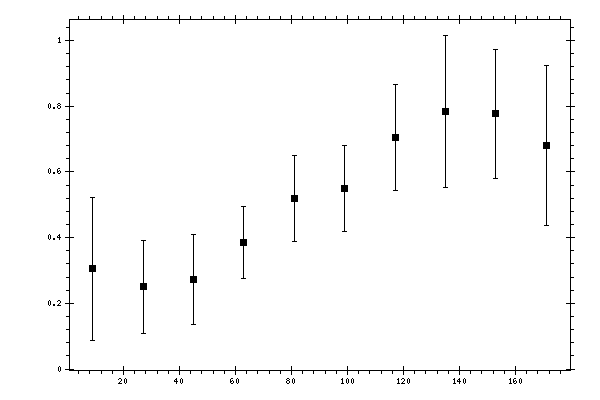

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.3046 | 0.0476 | 0.1493 | 0.2171 |
| 27 | 0.2507 | 0.0334 | 0.0974 | 0.142 |
| 45 | 0.2726 | 0.0313 | 0.0907 | 0.136 |
| 63 | 0.3858 | 0.0444 | 0.1001 | 0.1095 |
| 81 | 0.5201 | 0.0638 | 0.1143 | 0.1309 |
| 99 | 0.5493 | 0.0515 | 0.1189 | 0.1296 |
| 117 | 0.7059 | 0.0697 | 0.1455 | 0.1613 |
| 135 | 0.7847 | 0.0869 | 0.1602 | 0.2313 |
| 153 | 0.7768 | 0.08 | 0.1631 | 0.1967 |
| 171 | 0.681 | 0.1013 | 0.1827 | 0.2437 |
