Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.575 — 1.6 GeV | |
| Ebeam : | 5.754 GeV |
|

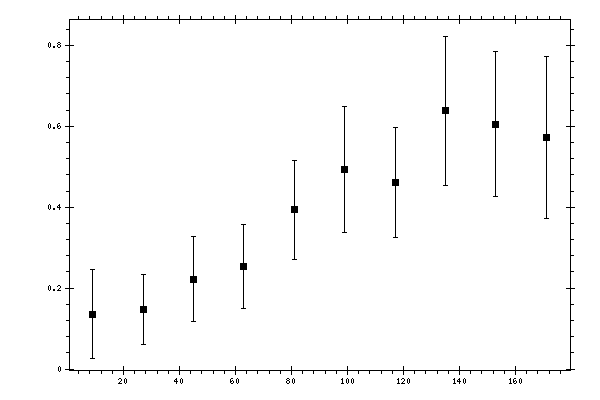

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.1359 | 0.04 | 0.0755 | 0.11 |
| 27 | 0.1469 | 0.0244 | 0.0577 | 0.0865 |
| 45 | 0.2218 | 0.0303 | 0.0742 | 0.105 |
| 63 | 0.253 | 0.0683 | 0.0786 | 0.1042 |
| 81 | 0.3937 | 0.0497 | 0.1114 | 0.1219 |
| 99 | 0.4936 | 0.0719 | 0.1372 | 0.1549 |
| 117 | 0.46 | 0.0442 | 0.1286 | 0.1359 |
| 135 | 0.6385 | 0.0605 | 0.1743 | 0.1845 |
| 153 | 0.6054 | 0.0665 | 0.1664 | 0.1792 |
| 171 | 0.5722 | 0.0983 | 0.174 | 0.1998 |
