Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
Measurement comment: The angle ψ is the angle between the plane defined by the three-momenta of the hadron (in parentheses) and the target proton, and the plane defined by the three-momenta of the other two final-state hadrons
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcb/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.6 — 1.625 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcb/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

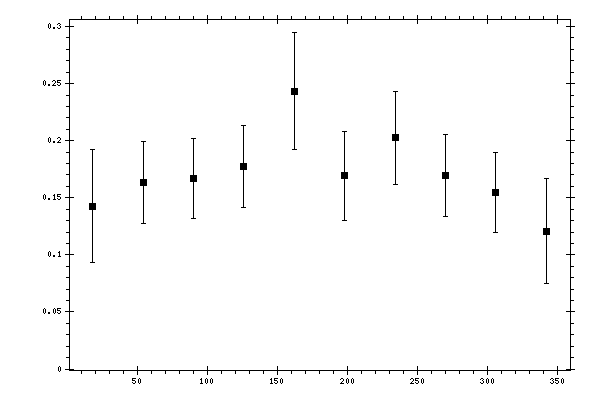

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 18 | 0.1425 | 0.03 | 0.035 | 0.0495 |
| 54 | 0.1634 | 0.0216 | 0.0284 | 0.0357 |
| 90 | 0.1667 | 0.0193 | 0.0291 | 0.0349 |
| 126 | 0.177 | 0.0197 | 0.0301 | 0.0359 |
| 162 | 0.2434 | 0.0281 | 0.0365 | 0.0513 |
| 198 | 0.1694 | 0.0183 | 0.0277 | 0.0389 |
| 234 | 0.2025 | 0.0236 | 0.0332 | 0.0408 |
| 270 | 0.1697 | 0.0213 | 0.0291 | 0.0361 |
| 306 | 0.1549 | 0.021 | 0.0278 | 0.0349 |
| 342 | 0.1205 | 0.0161 | 0.033 | 0.046 |
