Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.6 — 1.625 GeV | |
| Ebeam : | 5.754 GeV |
|

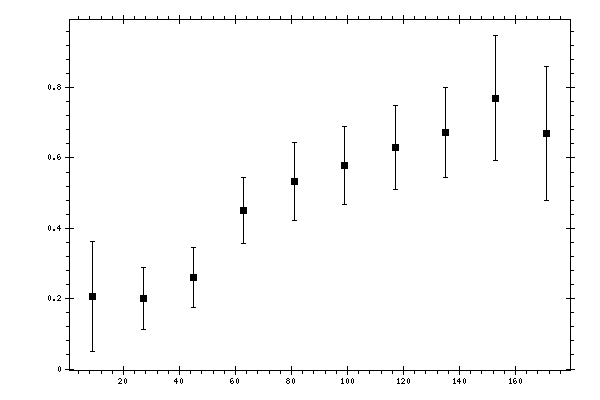

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.2066 | 0.0274 | 0.091 | 0.1566 |
| 27 | 0.2008 | 0.0264 | 0.0576 | 0.0879 |
| 45 | 0.2598 | 0.0314 | 0.0609 | 0.0857 |
| 63 | 0.4505 | 0.0491 | 0.0806 | 0.0944 |
| 81 | 0.5332 | 0.0678 | 0.088 | 0.1111 |
| 99 | 0.5781 | 0.0572 | 0.0952 | 0.1111 |
| 117 | 0.6305 | 0.0602 | 0.1039 | 0.1201 |
| 135 | 0.6722 | 0.0659 | 0.1097 | 0.128 |
| 153 | 0.7702 | 0.0694 | 0.1212 | 0.1773 |
| 171 | 0.6692 | 0.0968 | 0.1337 | 0.1913 |
