Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.625 — 1.65 GeV | |
| Ebeam : | 5.754 GeV |
|

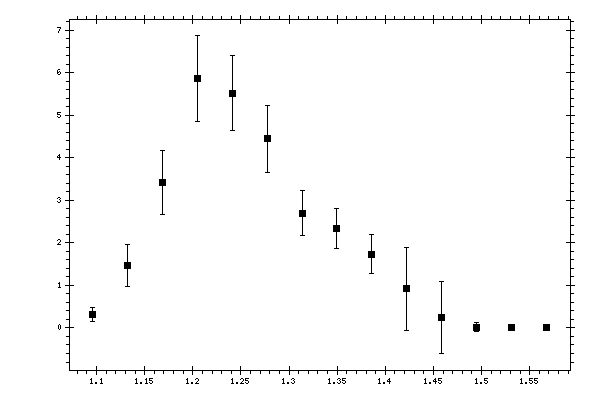

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.09597 | 0.3217 | 0.0645 | 0.1094 | 0.1583 |
| 1.132227 | 1.4688 | 0.2129 | 0.3545 | 0.5002 |
| 1.168483 | 3.4243 | 0.3839 | 0.6388 | 0.7453 |
| 1.204739 | 5.8595 | 0.5511 | 0.8435 | 1.0075 |
| 1.240995 | 5.5202 | 0.4545 | 0.7561 | 0.8821 |
| 1.277252 | 4.4436 | 0.4761 | 0.6148 | 0.7777 |
| 1.313508 | 2.6973 | 0.3198 | 0.4259 | 0.5326 |
| 1.349764 | 2.3488 | 0.2651 | 0.3895 | 0.4711 |
| 1.38602 | 1.7299 | 0.2253 | 0.3261 | 0.4606 |
| 1.422277 | 0.9178 | 0.1384 | 0.2289 | 0.9659 |
| 1.458533 | 0.2539 | 0.0393 | 0.1011 | 0.8454 |
| 1.494789 | 0.0207 | 0.0058 | 0.0124 | 0.1065 |
| 1.531046 | 0 | 0.002 | 0 | 0 |
| 1.567302 | 0 | 0.0021 | 0 | 0 |
