Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.625 — 1.65 GeV | |
| Ebeam : | 5.754 GeV |
|

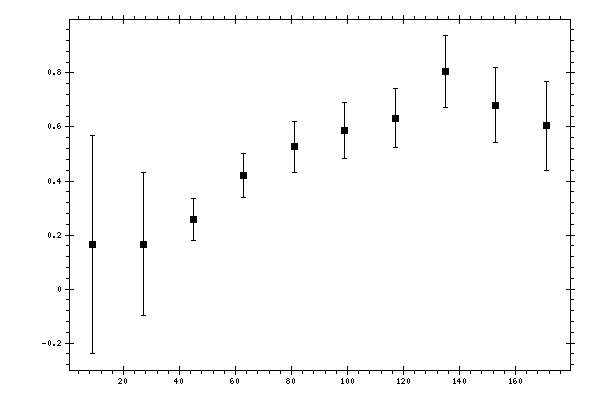

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.1657 | 0.0132 | 0.0866 | 0.4026 |
| 27 | 0.1666 | 0.0201 | 0.0539 | 0.2657 |
| 45 | 0.2576 | 0.0292 | 0.0555 | 0.0783 |
| 63 | 0.4218 | 0.0428 | 0.0687 | 0.081 |
| 81 | 0.5266 | 0.0509 | 0.0794 | 0.0943 |
| 99 | 0.5873 | 0.0554 | 0.0878 | 0.1039 |
| 117 | 0.6321 | 0.0535 | 0.0957 | 0.1096 |
| 135 | 0.805 | 0.0675 | 0.1136 | 0.1322 |
| 153 | 0.681 | 0.0665 | 0.0984 | 0.1378 |
| 171 | 0.6039 | 0.0851 | 0.1181 | 0.1649 |
