Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.675 — 1.7 GeV | |
| Ebeam : | 5.754 GeV |
|

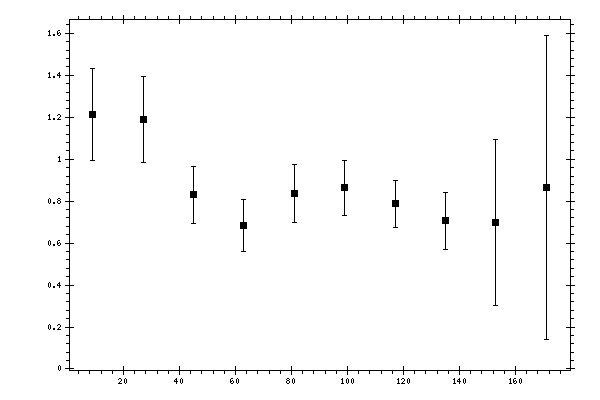

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.2111 | 0.1519 | 0.1585 | 0.2195 |
| 27 | 1.1898 | 0.1082 | 0.1417 | 0.2051 |
| 45 | 0.8306 | 0.084 | 0.1081 | 0.1369 |
| 63 | 0.685 | 0.0696 | 0.1013 | 0.1229 |
| 81 | 0.8367 | 0.0774 | 0.114 | 0.1378 |
| 99 | 0.8632 | 0.0706 | 0.1085 | 0.1294 |
| 117 | 0.7879 | 0.0561 | 0.0971 | 0.1122 |
| 135 | 0.7061 | 0.0688 | 0.0958 | 0.1376 |
| 153 | 0.698 | 0.0792 | 0.2783 | 0.3942 |
| 171 | 0.865 | 0.0033 | 0.5135 | 0.7261 |
