Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
Measurement comment: The angle ψ is the angle between the plane defined by the three-momenta of the hadron (in parentheses) and the target proton, and the plane defined by the three-momenta of the other two final-state hadrons
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcb/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.7 — 1.725 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcb/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

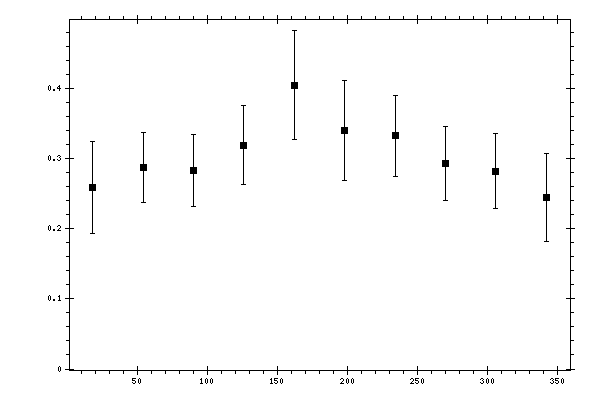

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 18 | 0.2594 | 0.0303 | 0.058 | 0.0654 |
| 54 | 0.2878 | 0.0251 | 0.0436 | 0.0503 |
| 90 | 0.2834 | 0.0237 | 0.0451 | 0.0509 |
| 126 | 0.3196 | 0.0261 | 0.0503 | 0.0566 |
| 162 | 0.405 | 0.039 | 0.0545 | 0.0781 |
| 198 | 0.3406 | 0.0281 | 0.0502 | 0.0709 |
| 234 | 0.3326 | 0.0274 | 0.0513 | 0.0582 |
| 270 | 0.2932 | 0.0253 | 0.0457 | 0.0523 |
| 306 | 0.2825 | 0.0305 | 0.0437 | 0.0533 |
| 342 | 0.2443 | 0.0273 | 0.0566 | 0.0628 |
