Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.7 — 1.725 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

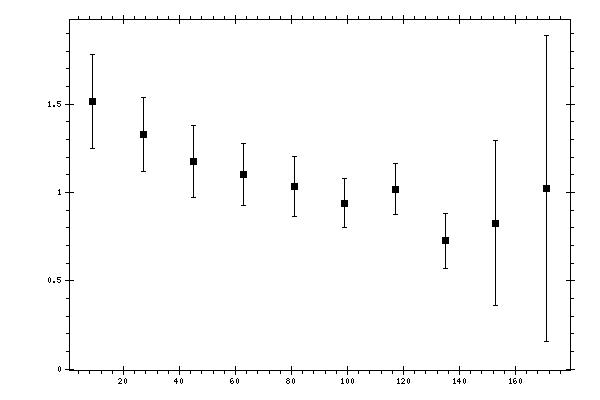

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.514 | 0.1732 | 0.2004 | 0.2648 |
| 27 | 1.3263 | 0.1286 | 0.1649 | 0.2091 |
| 45 | 1.1757 | 0.1348 | 0.1513 | 0.2026 |
| 63 | 1.1002 | 0.0963 | 0.1486 | 0.1771 |
| 81 | 1.0332 | 0.0784 | 0.1487 | 0.1681 |
| 99 | 0.9395 | 0.0658 | 0.123 | 0.1395 |
| 117 | 1.0186 | 0.0735 | 0.1264 | 0.1462 |
| 135 | 0.7271 | 0.0844 | 0.1057 | 0.1557 |
| 153 | 0.8256 | 0.1074 | 0.3251 | 0.4685 |
| 171 | 1.0231 | 0.0031 | 0.6114 | 0.8659 |
