Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.725 — 1.75 GeV | |
| Ebeam : | 5.754 GeV |
|

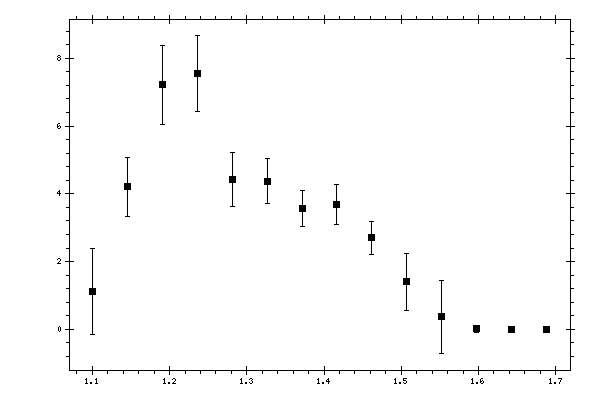

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.100435 | 1.1298 | 0.1583 | 0.259 | 1.2689 |
| 1.145619 | 4.2029 | 0.536 | 0.6964 | 0.8788 |
| 1.190804 | 7.2213 | 0.5882 | 1.0029 | 1.1627 |
| 1.235989 | 7.5451 | 0.6205 | 0.9297 | 1.1178 |
| 1.281174 | 4.4333 | 0.5547 | 0.5683 | 0.7942 |
| 1.326359 | 4.3758 | 0.4099 | 0.5234 | 0.6648 |
| 1.371544 | 3.5659 | 0.309 | 0.4272 | 0.5272 |
| 1.416728 | 3.6802 | 0.403 | 0.4285 | 0.5882 |
| 1.461913 | 2.6973 | 0.3505 | 0.3301 | 0.4815 |
| 1.507098 | 1.3977 | 0.2021 | 0.2096 | 0.8291 |
| 1.552283 | 0.3715 | 0.0708 | 0.0991 | 1.0754 |
| 1.597468 | 0.0158 | 0.0049 | 0.0093 | 0.101 |
| 1.642653 | 0 | 0.0014 | 0 | 0 |
| 1.687837 | 0 | 0 | 0 | 0 |
