Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.725 — 1.75 GeV | |
| Ebeam : | 5.754 GeV |
|

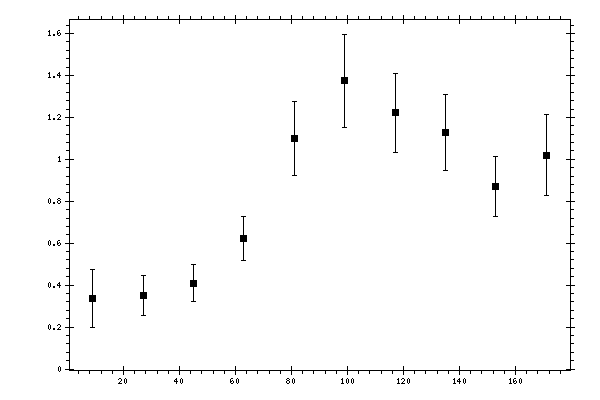

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.3377 | 0.0486 | 0.0974 | 0.1385 |
| 27 | 0.3506 | 0.0396 | 0.0636 | 0.0943 |
| 45 | 0.4094 | 0.041 | 0.0627 | 0.0875 |
| 63 | 0.6222 | 0.0617 | 0.0841 | 0.1043 |
| 81 | 1.098 | 0.0957 | 0.1476 | 0.1759 |
| 99 | 1.3744 | 0.1327 | 0.1761 | 0.2205 |
| 117 | 1.222 | 0.0914 | 0.1631 | 0.187 |
| 135 | 1.1294 | 0.0948 | 0.1543 | 0.1811 |
| 153 | 0.871 | 0.0776 | 0.1184 | 0.1416 |
| 171 | 1.0204 | 0.1257 | 0.1476 | 0.1938 |
