Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.75 — 1.775 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

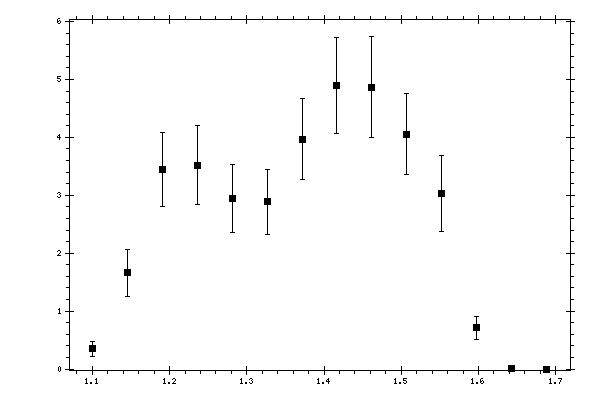

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.100435 | 0.3465 | 0.099 | 0.0918 | 0.1351 |
| 1.145619 | 1.6598 | 0.279 | 0.2917 | 0.4036 |
| 1.190804 | 3.4424 | 0.3264 | 0.5496 | 0.6392 |
| 1.235989 | 3.5207 | 0.3181 | 0.6038 | 0.6825 |
| 1.281174 | 2.9436 | 0.2468 | 0.5386 | 0.5924 |
| 1.326359 | 2.8888 | 0.2712 | 0.4885 | 0.5588 |
| 1.371544 | 3.9698 | 0.4057 | 0.5687 | 0.6986 |
| 1.416728 | 4.8967 | 0.4275 | 0.7169 | 0.8347 |
| 1.461913 | 4.8683 | 0.4712 | 0.7327 | 0.8712 |
| 1.507098 | 4.0578 | 0.2904 | 0.6369 | 0.7 |
| 1.552283 | 3.0241 | 0.4514 | 0.4759 | 0.6559 |
| 1.597468 | 0.7117 | 0.135 | 0.149 | 0.201 |
| 1.642653 | 0.0154 | 0.0069 | 0.0065 | 0.0095 |
| 1.687837 | 0 | 0 | 0 | 0 |
