Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
Measurement comment: The angle ψ is the angle between the plane defined by the three-momenta of the hadron (in parentheses) and the target proton, and the plane defined by the three-momenta of the other two final-state hadrons
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcb/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.775 — 1.8 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcb/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

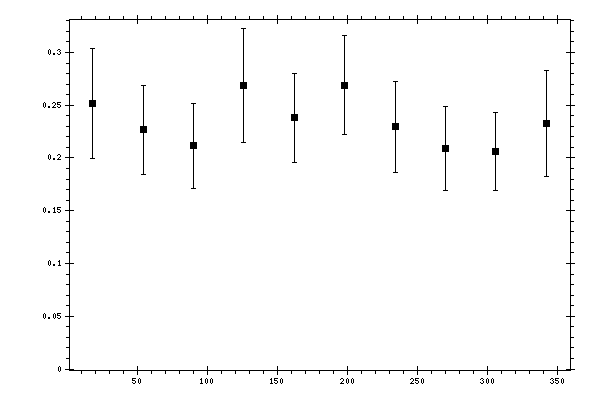

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 18 | 0.2517 | 0.0216 | 0.0478 | 0.0525 |
| 54 | 0.2267 | 0.0221 | 0.0358 | 0.042 |
| 90 | 0.2114 | 0.0217 | 0.0335 | 0.0399 |
| 126 | 0.2689 | 0.0374 | 0.0392 | 0.0542 |
| 162 | 0.2382 | 0.0216 | 0.0364 | 0.0423 |
| 198 | 0.2691 | 0.026 | 0.0388 | 0.0467 |
| 234 | 0.2295 | 0.0237 | 0.0356 | 0.0428 |
| 270 | 0.209 | 0.0215 | 0.0334 | 0.0397 |
| 306 | 0.2059 | 0.0154 | 0.0335 | 0.0369 |
| 342 | 0.2325 | 0.0214 | 0.0453 | 0.0501 |
