Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.775 — 1.8 GeV | |
| Ebeam : | 5.754 GeV |
|

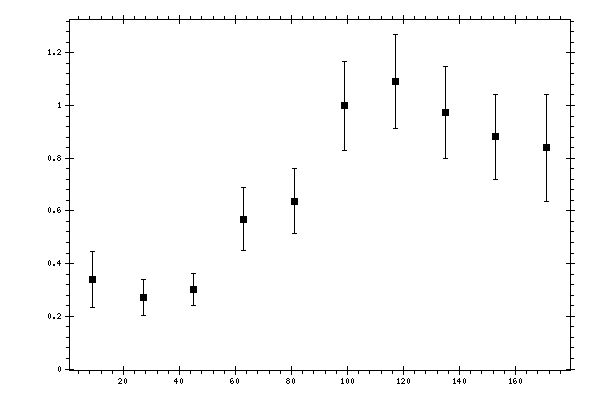

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.34 | 0.0437 | 0.0972 | 0.1066 |
| 27 | 0.2729 | 0.0349 | 0.0584 | 0.068 |
| 45 | 0.3016 | 0.0262 | 0.0537 | 0.0597 |
| 63 | 0.5681 | 0.0792 | 0.0904 | 0.1202 |
| 81 | 0.6365 | 0.0479 | 0.1137 | 0.1234 |
| 99 | 0.9988 | 0.0736 | 0.152 | 0.1689 |
| 117 | 1.0927 | 0.076 | 0.1616 | 0.1786 |
| 135 | 0.974 | 0.083 | 0.153 | 0.1741 |
| 153 | 0.8806 | 0.0799 | 0.139 | 0.1603 |
| 171 | 0.839 | 0.1344 | 0.1509 | 0.202 |
