Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.8 — 1.825 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

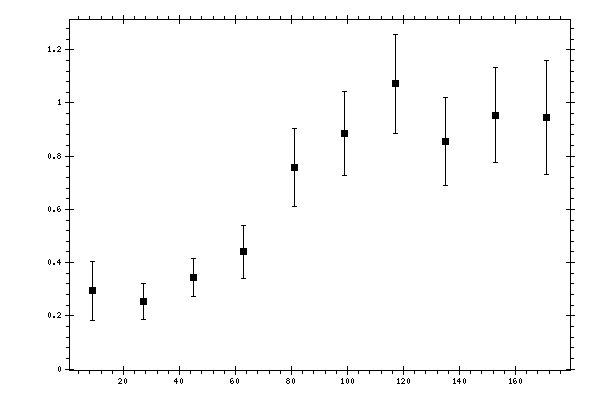

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.2939 | 0.0374 | 0.1036 | 0.1102 |
| 27 | 0.2554 | 0.0298 | 0.0606 | 0.0675 |
| 45 | 0.3451 | 0.0343 | 0.0618 | 0.0707 |
| 63 | 0.4404 | 0.0394 | 0.0914 | 0.0996 |
| 81 | 0.7574 | 0.0594 | 0.134 | 0.1466 |
| 99 | 0.885 | 0.0529 | 0.1496 | 0.1586 |
| 117 | 1.0722 | 0.082 | 0.1671 | 0.1861 |
| 135 | 0.8559 | 0.066 | 0.1522 | 0.1659 |
| 153 | 0.9545 | 0.0862 | 0.1551 | 0.1775 |
| 171 | 0.947 | 0.1219 | 0.1767 | 0.2146 |
