Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.825 — 1.85 GeV | |
| Ebeam : | 5.754 GeV |
|

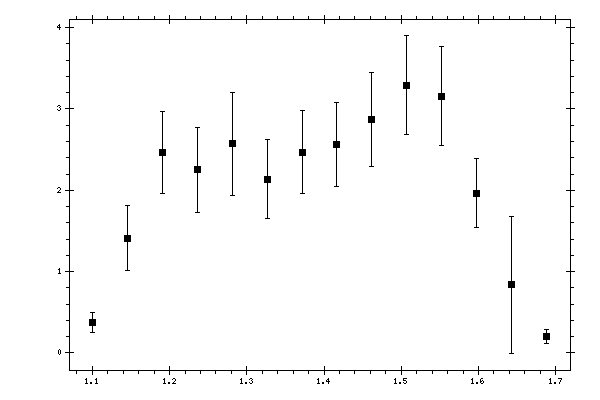

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.100435 | 0.3721 | 0.0778 | 0.0951 | 0.1228 |
| 1.145619 | 1.4096 | 0.2793 | 0.2833 | 0.3978 |
| 1.190804 | 2.4611 | 0.2256 | 0.452 | 0.5051 |
| 1.235989 | 2.2522 | 0.2357 | 0.4655 | 0.5218 |
| 1.281174 | 2.5702 | 0.3858 | 0.5001 | 0.6316 |
| 1.326359 | 2.1341 | 0.1832 | 0.4509 | 0.4867 |
| 1.371544 | 2.4707 | 0.2214 | 0.4654 | 0.5154 |
| 1.416728 | 2.5668 | 0.2183 | 0.4704 | 0.5186 |
| 1.461913 | 2.8655 | 0.3091 | 0.489 | 0.5784 |
| 1.507098 | 3.2906 | 0.261 | 0.5498 | 0.6086 |
| 1.552283 | 3.1581 | 0.2903 | 0.5383 | 0.6116 |
| 1.597468 | 1.9663 | 0.2038 | 0.3694 | 0.4219 |
| 1.642653 | 0.838 | 0.8134 | 0.2148 | 0.8413 |
| 1.687837 | 0.1969 | 0.0388 | 0.0749 | 0.0844 |
