Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.825 — 1.85 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

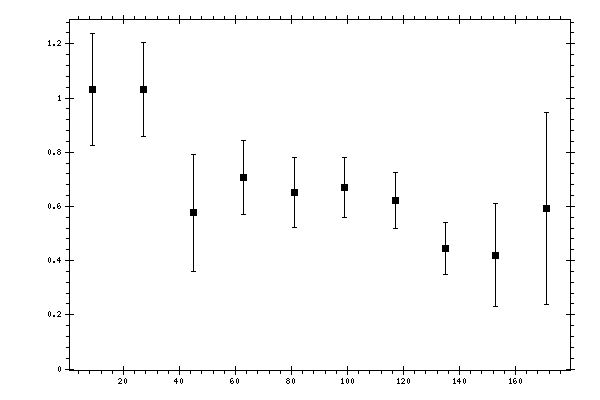

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.0319 | 0.145 | 0.1456 | 0.2055 |
| 27 | 1.0305 | 0.0935 | 0.1467 | 0.1739 |
| 45 | 0.5769 | 0.1779 | 0.1232 | 0.2164 |
| 63 | 0.7069 | 0.0615 | 0.1229 | 0.1374 |
| 81 | 0.6519 | 0.0578 | 0.1163 | 0.1299 |
| 99 | 0.6701 | 0.0434 | 0.1025 | 0.1113 |
| 117 | 0.6222 | 0.0419 | 0.0947 | 0.1035 |
| 135 | 0.443 | 0.0454 | 0.0847 | 0.0961 |
| 153 | 0.4202 | 0.0701 | 0.1781 | 0.1914 |
| 171 | 0.5907 | 0.0019 | 0.3543 | 0.3543 |
