Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.825 — 1.85 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

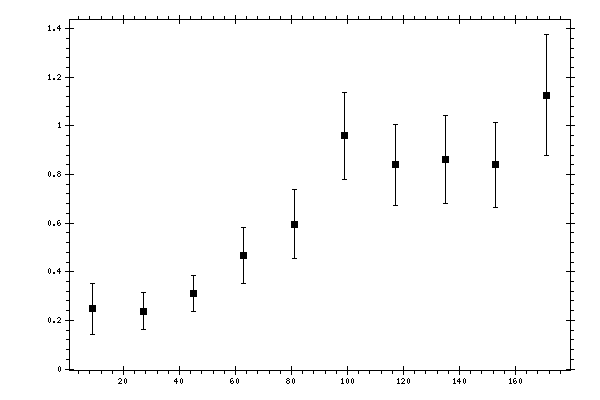

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.2482 | 0.0275 | 0.1006 | 0.1043 |
| 27 | 0.2384 | 0.0411 | 0.0618 | 0.0743 |
| 45 | 0.3103 | 0.0372 | 0.0655 | 0.0753 |
| 63 | 0.4673 | 0.0495 | 0.1031 | 0.1144 |
| 81 | 0.5952 | 0.0627 | 0.1275 | 0.1421 |
| 99 | 0.9587 | 0.0627 | 0.1689 | 0.1801 |
| 117 | 0.8402 | 0.0536 | 0.1583 | 0.1671 |
| 135 | 0.8607 | 0.0735 | 0.1653 | 0.1809 |
| 153 | 0.8399 | 0.0695 | 0.1594 | 0.1739 |
| 171 | 1.1252 | 0.1284 | 0.2128 | 0.2485 |
