Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.85 — 1.875 GeV | |
| Ebeam : | 5.754 GeV |
|

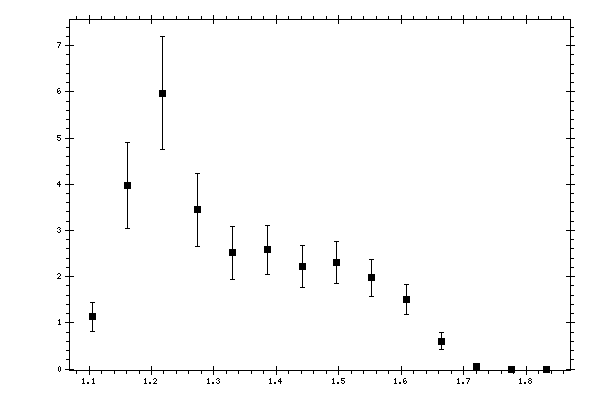

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.105792 | 1.1325 | 0.1444 | 0.2788 | 0.3139 |
| 1.161691 | 3.9722 | 0.3676 | 0.8458 | 0.9222 |
| 1.21759 | 5.9696 | 0.5735 | 1.0837 | 1.2261 |
| 1.273489 | 3.4426 | 0.3257 | 0.7088 | 0.78 |
| 1.329388 | 2.5144 | 0.2532 | 0.5218 | 0.58 |
| 1.385287 | 2.5853 | 0.2285 | 0.4793 | 0.5309 |
| 1.441186 | 2.2208 | 0.205 | 0.4132 | 0.4612 |
| 1.497086 | 2.3049 | 0.2408 | 0.3926 | 0.4606 |
| 1.552985 | 1.9732 | 0.2223 | 0.3298 | 0.3977 |
| 1.608884 | 1.5097 | 0.191 | 0.2601 | 0.3226 |
| 1.664783 | 0.6048 | 0.1018 | 0.1438 | 0.1761 |
| 1.720682 | 0.0435 | 0.0029 | 0.0269 | 0.027 |
| 1.776581 | 0 | 0.0009 | 0 | 0 |
| 1.83248 | 0 | 0 | 0 | 0 |
