Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.875 — 1.9 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

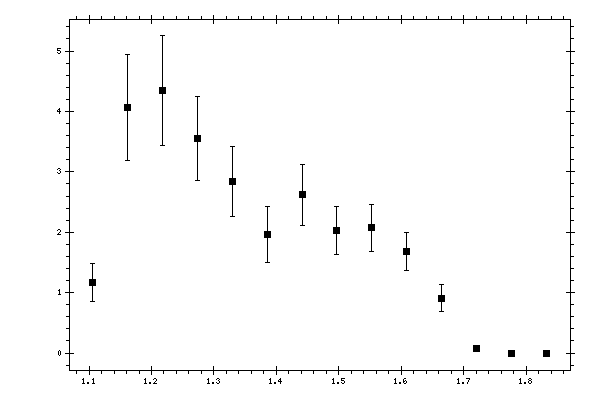

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.105792 | 1.1685 | 0.1369 | 0.2792 | 0.311 |
| 1.161691 | 4.0659 | 0.3872 | 0.7824 | 0.873 |
| 1.21759 | 4.3476 | 0.4137 | 0.8036 | 0.9038 |
| 1.273489 | 3.5517 | 0.3008 | 0.6302 | 0.6983 |
| 1.329388 | 2.8342 | 0.2994 | 0.4977 | 0.5809 |
| 1.385287 | 1.9559 | 0.2764 | 0.3733 | 0.4645 |
| 1.441186 | 2.6251 | 0.2947 | 0.4101 | 0.505 |
| 1.497086 | 2.0273 | 0.2288 | 0.3299 | 0.4015 |
| 1.552985 | 2.0715 | 0.2302 | 0.3156 | 0.3906 |
| 1.608884 | 1.6834 | 0.1821 | 0.2522 | 0.3111 |
| 1.664783 | 0.9117 | 0.1583 | 0.1639 | 0.2278 |
| 1.720682 | 0.0743 | 0.0111 | 0.0346 | 0.0363 |
| 1.776581 | 0.0003 | 0.0012 | 0.0002 | 0.0013 |
| 1.83248 | 0 | 0 | 0 | 0 |
