Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
Measurement comment: The angle ψ is the angle between the plane defined by the three-momenta of the hadron (in parentheses) and the target proton, and the plane defined by the three-momenta of the other two final-state hadrons
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcb/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.875 — 1.9 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcb/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

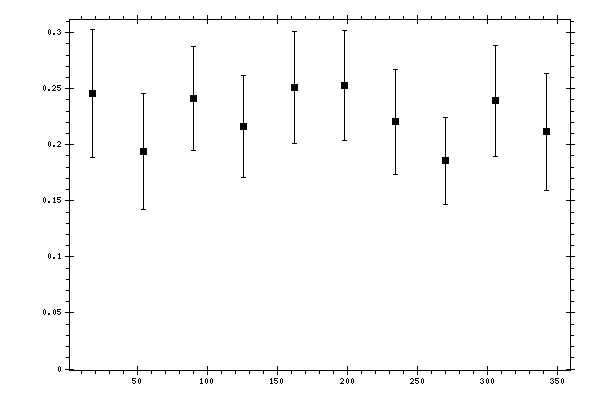

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 18 | 0.246 | 0.0221 | 0.0528 | 0.0572 |
| 54 | 0.194 | 0.0355 | 0.0378 | 0.0519 |
| 90 | 0.2412 | 0.021 | 0.0416 | 0.0465 |
| 126 | 0.2163 | 0.0182 | 0.0415 | 0.0453 |
| 162 | 0.2513 | 0.0224 | 0.0447 | 0.05 |
| 198 | 0.2532 | 0.0202 | 0.0447 | 0.0491 |
| 234 | 0.2204 | 0.0214 | 0.0417 | 0.0468 |
| 270 | 0.1859 | 0.0134 | 0.0364 | 0.0388 |
| 306 | 0.2391 | 0.0264 | 0.0422 | 0.0497 |
| 342 | 0.2116 | 0.018 | 0.0491 | 0.0523 |
