Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.875 — 1.9 GeV | |
| Ebeam : | 5.754 GeV |
|

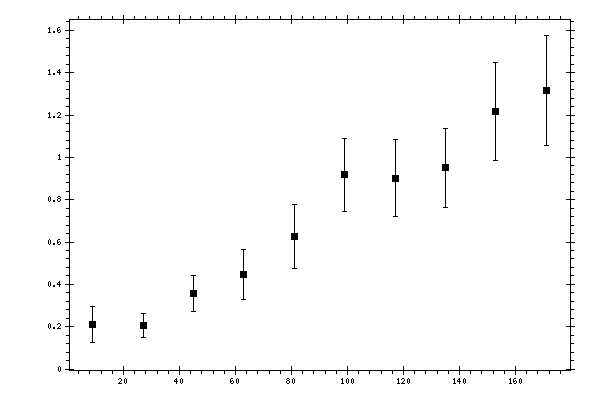

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.2098 | 0.0296 | 0.0803 | 0.0856 |
| 27 | 0.2053 | 0.026 | 0.0498 | 0.0562 |
| 45 | 0.3566 | 0.0502 | 0.0689 | 0.0852 |
| 63 | 0.4472 | 0.0536 | 0.1057 | 0.1185 |
| 81 | 0.6267 | 0.0668 | 0.1347 | 0.1504 |
| 99 | 0.9173 | 0.0535 | 0.1641 | 0.1726 |
| 117 | 0.9023 | 0.072 | 0.1653 | 0.1803 |
| 135 | 0.9514 | 0.0621 | 0.1766 | 0.1872 |
| 153 | 1.2169 | 0.1237 | 0.1957 | 0.2315 |
| 171 | 1.3171 | 0.1388 | 0.219 | 0.2593 |
