Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.9 — 1.925 GeV | |
| Ebeam : | 5.754 GeV |
|

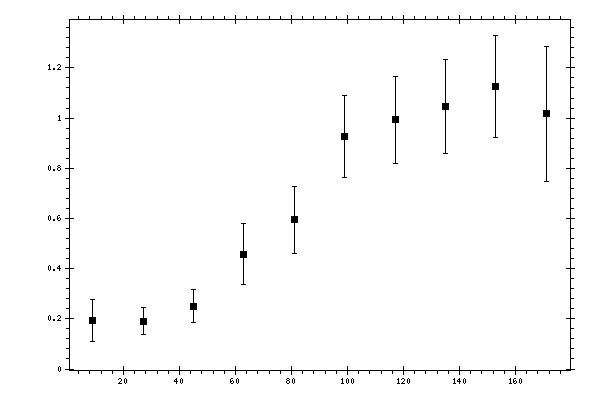

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.1943 | 0.022 | 0.0803 | 0.0832 |
| 27 | 0.1907 | 0.0212 | 0.0497 | 0.0541 |
| 45 | 0.251 | 0.0223 | 0.0635 | 0.0673 |
| 63 | 0.4579 | 0.0517 | 0.1085 | 0.1202 |
| 81 | 0.5946 | 0.0446 | 0.127 | 0.1346 |
| 99 | 0.927 | 0.0557 | 0.155 | 0.1647 |
| 117 | 0.9927 | 0.0611 | 0.1634 | 0.1745 |
| 135 | 1.0458 | 0.0668 | 0.174 | 0.1864 |
| 153 | 1.1254 | 0.0985 | 0.1793 | 0.2046 |
| 171 | 1.0169 | 0.1918 | 0.1869 | 0.2678 |
