Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.925 — 1.95 GeV | |
| Ebeam : | 5.754 GeV |
|

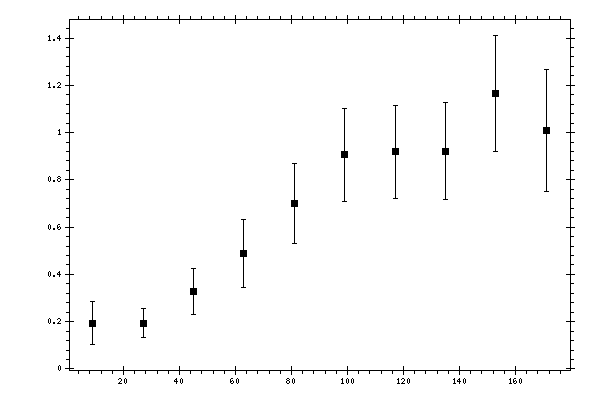

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.194 | 0.0252 | 0.0868 | 0.0904 |
| 27 | 0.1942 | 0.0236 | 0.0572 | 0.0619 |
| 45 | 0.3264 | 0.0389 | 0.0894 | 0.0975 |
| 63 | 0.4878 | 0.0443 | 0.1362 | 0.1432 |
| 81 | 0.7006 | 0.0587 | 0.1589 | 0.1694 |
| 99 | 0.9065 | 0.0628 | 0.1864 | 0.1967 |
| 117 | 0.9181 | 0.0515 | 0.1889 | 0.1958 |
| 135 | 0.9207 | 0.0581 | 0.1969 | 0.2053 |
| 153 | 1.1646 | 0.0921 | 0.2285 | 0.2464 |
| 171 | 1.0088 | 0.1062 | 0.2351 | 0.258 |
