Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.95 — 1.975 GeV | |
| Ebeam : | 5.754 GeV |
|

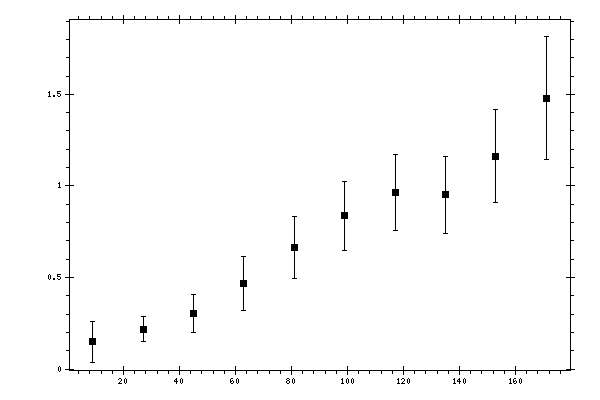

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.1478 | 0.067 | 0.0881 | 0.1107 |
| 27 | 0.2173 | 0.0259 | 0.0644 | 0.0694 |
| 45 | 0.3039 | 0.0316 | 0.0998 | 0.1047 |
| 63 | 0.4683 | 0.0489 | 0.1399 | 0.1482 |
| 81 | 0.6647 | 0.0511 | 0.1598 | 0.1678 |
| 99 | 0.8364 | 0.051 | 0.1799 | 0.187 |
| 117 | 0.9635 | 0.0687 | 0.1979 | 0.2095 |
| 135 | 0.9506 | 0.0604 | 0.2035 | 0.2123 |
| 153 | 1.1633 | 0.0922 | 0.2383 | 0.2555 |
| 171 | 1.4794 | 0.1428 | 0.306 | 0.3377 |
