Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.975 — 2 GeV | |
| Ebeam : | 5.754 GeV |
|

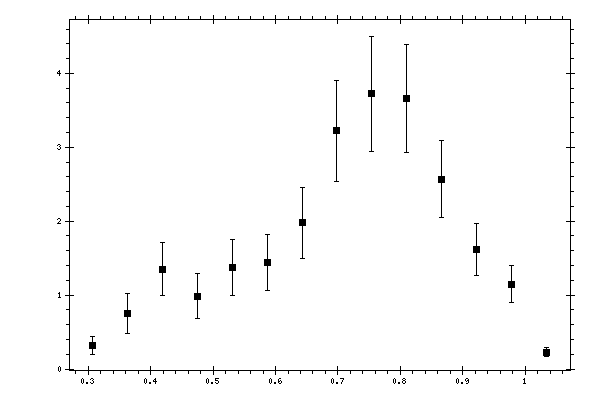

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 0.30709 | 0.3158 | 0.0428 | 0.1182 | 0.1257 |
| 0.362989 | 0.7501 | 0.1144 | 0.2414 | 0.2672 |
| 0.418888 | 1.3488 | 0.1364 | 0.3338 | 0.3606 |
| 0.474787 | 0.9866 | 0.1005 | 0.2834 | 0.3007 |
| 0.530686 | 1.3747 | 0.1934 | 0.3209 | 0.3747 |
| 0.586586 | 1.4391 | 0.1366 | 0.3526 | 0.3782 |
| 0.642485 | 1.9762 | 0.1983 | 0.4411 | 0.4836 |
| 0.698384 | 3.2212 | 0.2316 | 0.6464 | 0.6866 |
| 0.754283 | 3.7274 | 0.235 | 0.7418 | 0.7782 |
| 0.810182 | 3.6596 | 0.2572 | 0.6786 | 0.7257 |
| 0.866081 | 2.5675 | 0.1908 | 0.4857 | 0.5219 |
| 0.92198 | 1.615 | 0.1348 | 0.3281 | 0.3548 |
| 0.977879 | 1.1498 | 0.1626 | 0.1978 | 0.256 |
| 1.033778 | 0.2297 | 0.0345 | 0.0437 | 0.0556 |
