Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
Measurement comment: The angle ψ is the angle between the plane defined by the three-momenta of the hadron (in parentheses) and the target proton, and the plane defined by the three-momenta of the other two final-state hadrons
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcb/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 2 — 2.025 GeV | |
| Ebeam : | 5.754 GeV |
|

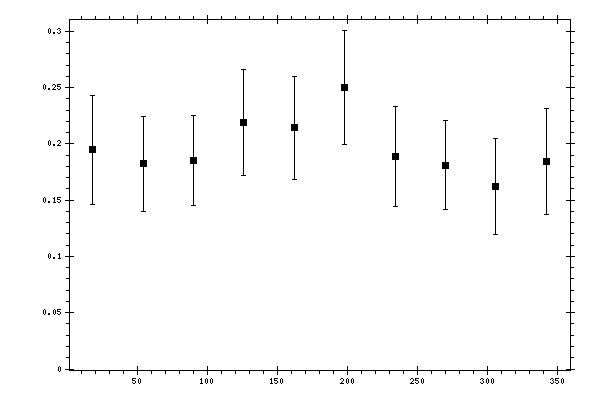

Observable quantity measured (Y axis): dσ/dψ(p), mcb/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 18 | 0.1946 | 0.018 | 0.0447 | 0.0482 |
| 54 | 0.1821 | 0.0197 | 0.0369 | 0.0418 |
| 90 | 0.1851 | 0.0142 | 0.0375 | 0.0401 |
| 126 | 0.2189 | 0.0179 | 0.0434 | 0.047 |
| 162 | 0.2142 | 0.0177 | 0.0419 | 0.0455 |
| 198 | 0.25 | 0.0235 | 0.0451 | 0.0509 |
| 234 | 0.1889 | 0.0162 | 0.0412 | 0.0443 |
| 270 | 0.1811 | 0.0135 | 0.037 | 0.0394 |
| 306 | 0.1619 | 0.0238 | 0.0354 | 0.0427 |
| 342 | 0.1842 | 0.0175 | 0.0439 | 0.0472 |
