Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 2 — 2.025 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

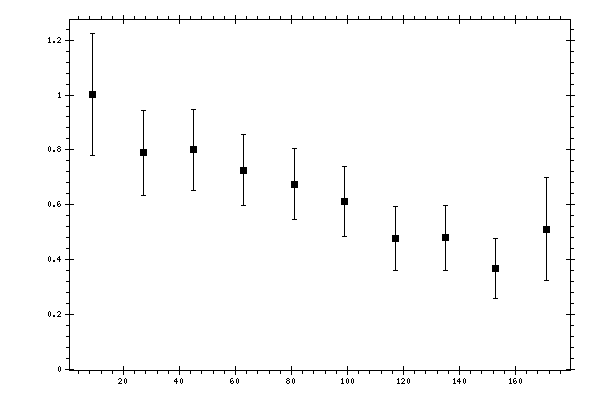

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.003 | 0.1273 | 0.1826 | 0.2226 |
| 27 | 0.7892 | 0.0779 | 0.1335 | 0.1545 |
| 45 | 0.7996 | 0.0752 | 0.1286 | 0.1489 |
| 63 | 0.726 | 0.0478 | 0.1218 | 0.1309 |
| 81 | 0.6749 | 0.05 | 0.1193 | 0.1294 |
| 99 | 0.6114 | 0.0469 | 0.1171 | 0.1261 |
| 117 | 0.4761 | 0.0466 | 0.1064 | 0.1162 |
| 135 | 0.4782 | 0.049 | 0.1096 | 0.12 |
| 153 | 0.3666 | 0.0402 | 0.1002 | 0.108 |
| 171 | 0.511 | 0.0861 | 0.1676 | 0.1884 |
