Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 2 — 2.025 GeV | |
| Ebeam : | 5.754 GeV |
|

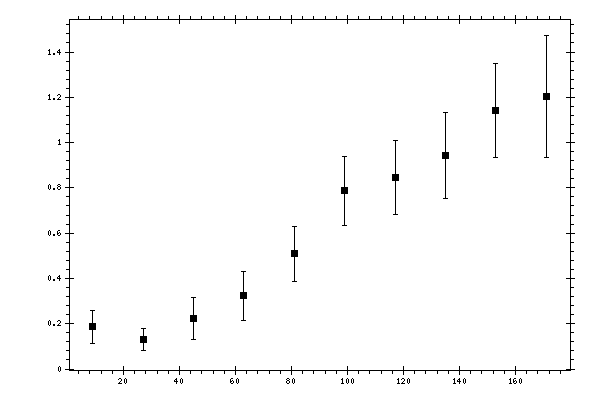

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.1858 | 0.0281 | 0.0656 | 0.0713 |
| 27 | 0.1298 | 0.0183 | 0.0435 | 0.0472 |
| 45 | 0.2221 | 0.0166 | 0.0925 | 0.094 |
| 63 | 0.3226 | 0.0296 | 0.1025 | 0.1067 |
| 81 | 0.5087 | 0.0326 | 0.1174 | 0.1218 |
| 99 | 0.7875 | 0.0466 | 0.1443 | 0.1516 |
| 117 | 0.8442 | 0.0661 | 0.1496 | 0.1635 |
| 135 | 0.9427 | 0.0946 | 0.1643 | 0.1896 |
| 153 | 1.1422 | 0.0776 | 0.1931 | 0.2081 |
| 171 | 1.2037 | 0.1476 | 0.224 | 0.2683 |
