Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 2.05 — 2.075 GeV | |
| Ebeam : | 5.754 GeV |
|

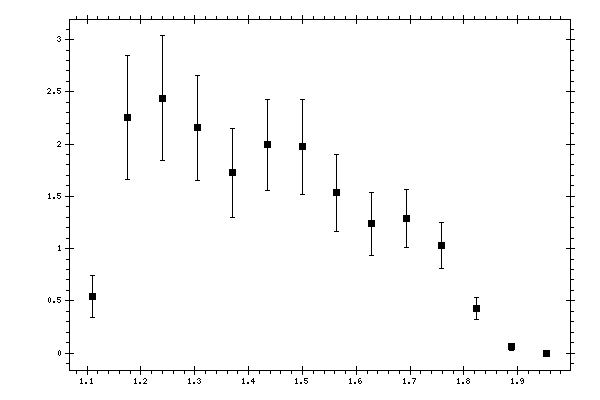

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.110256 | 0.542 | 0.0753 | 0.1845 | 0.1993 |
| 1.175084 | 2.2539 | 0.1892 | 0.5627 | 0.5936 |
| 1.239911 | 2.4391 | 0.1991 | 0.5627 | 0.5969 |
| 1.304739 | 2.1573 | 0.179 | 0.4682 | 0.5012 |
| 1.369567 | 1.7246 | 0.108 | 0.4119 | 0.4259 |
| 1.434394 | 1.9913 | 0.1884 | 0.3951 | 0.4378 |
| 1.499222 | 1.9728 | 0.2616 | 0.372 | 0.4548 |
| 1.56405 | 1.5348 | 0.18 | 0.3206 | 0.3676 |
| 1.628878 | 1.2352 | 0.153 | 0.2583 | 0.3002 |
| 1.693705 | 1.2884 | 0.1397 | 0.2354 | 0.2737 |
| 1.758533 | 1.0284 | 0.1284 | 0.182 | 0.2227 |
| 1.823361 | 0.4272 | 0.0592 | 0.0851 | 0.1036 |
| 1.888188 | 0.0597 | 0.0085 | 0.0306 | 0.0317 |
| 1.953016 | 0 | 0.0011 | 0 | 0.0011 |
