Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 2.05 — 2.075 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

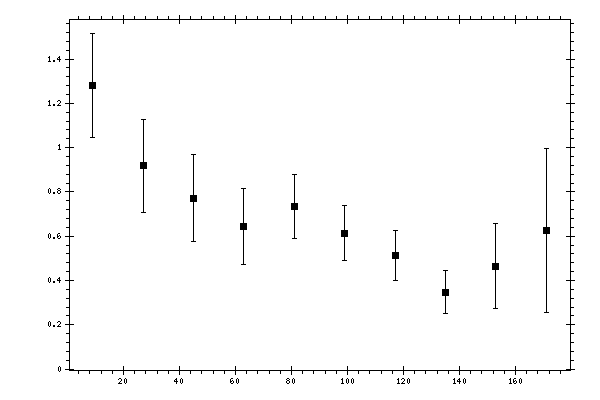

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.2782 | 0.1404 | 0.1882 | 0.2348 |
| 27 | 0.9173 | 0.0981 | 0.1854 | 0.2098 |
| 45 | 0.7712 | 0.0547 | 0.1884 | 0.1962 |
| 63 | 0.6415 | 0.0334 | 0.1682 | 0.1715 |
| 81 | 0.7343 | 0.0615 | 0.1306 | 0.1443 |
| 99 | 0.614 | 0.0425 | 0.1164 | 0.124 |
| 117 | 0.5123 | 0.0416 | 0.1049 | 0.1128 |
| 135 | 0.3472 | 0.0248 | 0.0948 | 0.098 |
| 153 | 0.4635 | 0.0801 | 0.1743 | 0.1918 |
| 171 | 0.6257 | 0.002 | 0.3711 | 0.3711 |
