Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 2.075 — 2.1 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

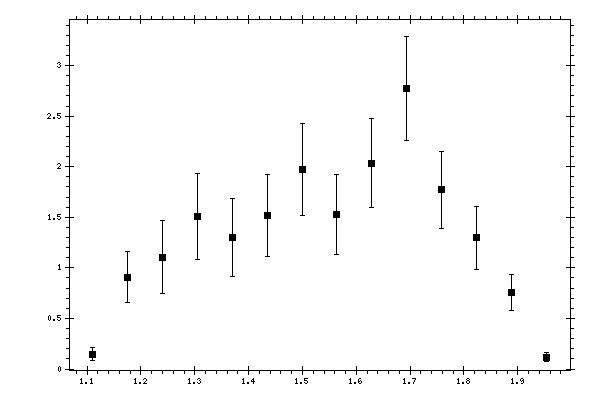

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.110256 | 0.148 | 0.0233 | 0.0629 | 0.0671 |
| 1.175084 | 0.9054 | 0.0994 | 0.2312 | 0.2517 |
| 1.239911 | 1.1053 | 0.1549 | 0.3281 | 0.3628 |
| 1.304739 | 1.5072 | 0.1742 | 0.3869 | 0.4243 |
| 1.369567 | 1.2993 | 0.1101 | 0.3689 | 0.3849 |
| 1.434394 | 1.5165 | 0.1192 | 0.3891 | 0.4069 |
| 1.499222 | 1.9742 | 0.1599 | 0.4271 | 0.4561 |
| 1.56405 | 1.5291 | 0.1409 | 0.3702 | 0.3961 |
| 1.628878 | 2.0349 | 0.1757 | 0.4027 | 0.4394 |
| 1.693705 | 2.7744 | 0.2546 | 0.448 | 0.5153 |
| 1.758533 | 1.7706 | 0.1441 | 0.3555 | 0.3836 |
| 1.823361 | 1.298 | 0.1122 | 0.289 | 0.31 |
| 1.888188 | 0.7551 | 0.0795 | 0.1591 | 0.1779 |
| 1.953016 | 0.118 | 0.0236 | 0.0341 | 0.0415 |
