Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 2.075 — 2.1 GeV | |
| Ebeam : | 5.754 GeV |
|

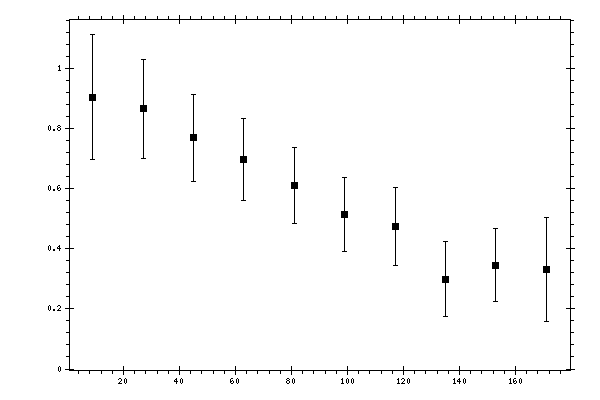

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.9049 | 0.1139 | 0.1752 | 0.2089 |
| 27 | 0.866 | 0.0785 | 0.1444 | 0.1644 |
| 45 | 0.7697 | 0.0686 | 0.1272 | 0.1446 |
| 63 | 0.6967 | 0.0623 | 0.1206 | 0.1358 |
| 81 | 0.6105 | 0.0432 | 0.1196 | 0.1271 |
| 99 | 0.5146 | 0.04 | 0.1165 | 0.1232 |
| 117 | 0.4733 | 0.0524 | 0.1183 | 0.1294 |
| 135 | 0.2981 | 0.0691 | 0.1041 | 0.125 |
| 153 | 0.3446 | 0.0369 | 0.1157 | 0.1214 |
| 171 | 0.3319 | 0.0242 | 0.1721 | 0.1738 |
