Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 2.075 — 2.1 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

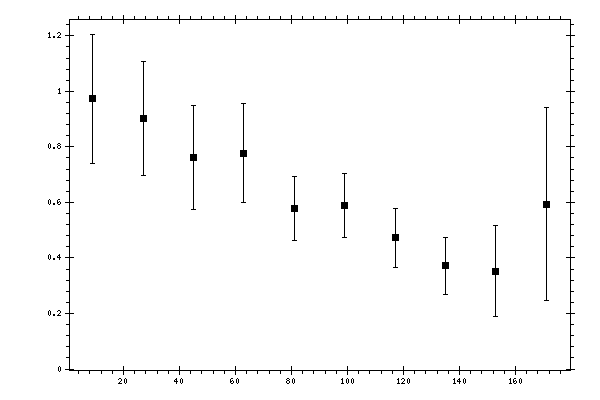

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.9732 | 0.1761 | 0.1523 | 0.2328 |
| 27 | 0.9033 | 0.0926 | 0.1835 | 0.2055 |
| 45 | 0.7621 | 0.052 | 0.1787 | 0.1861 |
| 63 | 0.777 | 0.0573 | 0.168 | 0.1775 |
| 81 | 0.577 | 0.0401 | 0.1083 | 0.1155 |
| 99 | 0.589 | 0.0425 | 0.1081 | 0.1161 |
| 117 | 0.4722 | 0.0382 | 0.0986 | 0.1057 |
| 135 | 0.3725 | 0.0349 | 0.0964 | 0.1025 |
| 153 | 0.3523 | 0.0238 | 0.163 | 0.1647 |
| 171 | 0.5941 | 0.0018 | 0.3475 | 0.3475 |
