Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.4 — 1.425 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

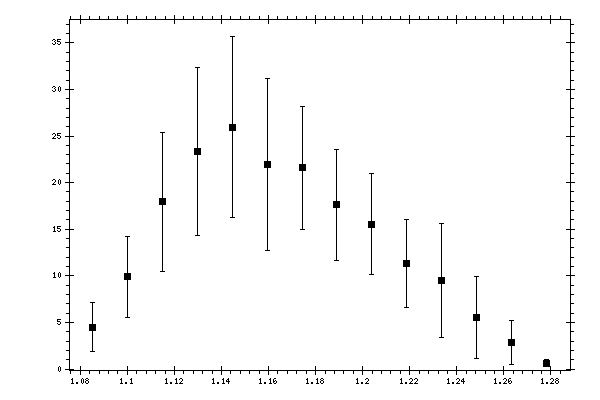

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.085256 | 4.4775 | 0.4008 | 1.7881 | 2.6096 |
| 1.100084 | 9.8922 | 2.2993 | 3.7146 | 4.3687 |
| 1.114911 | 17.9607 | 1.0998 | 5.4363 | 7.4539 |
| 1.129739 | 23.3423 | 1.5865 | 6.385 | 9.0309 |
| 1.144567 | 25.9591 | 1.4071 | 6.8697 | 9.716 |
| 1.159394 | 21.9866 | 1.22 | 6.5263 | 9.2322 |
| 1.174222 | 21.5889 | 1.1149 | 6.4717 | 6.567 |
| 1.18905 | 17.6213 | 1.5985 | 5.7616 | 5.9793 |
| 1.203877 | 15.533 | 0.8647 | 5.363 | 5.4323 |
| 1.218705 | 11.321 | 0.5792 | 4.6378 | 4.6739 |
| 1.233533 | 9.5323 | 0.5692 | 4.2689 | 6.1085 |
| 1.248361 | 5.5387 | 0.2104 | 3.0422 | 4.4228 |
| 1.263188 | 2.8625 | 0.1716 | 1.6461 | 2.3777 |
| 1.278016 | 0.6087 | 0.0068 | 0.3848 | 0.3849 |
