Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.4 — 1.425 GeV | |
| Ebeam : | 5.754 GeV |
|

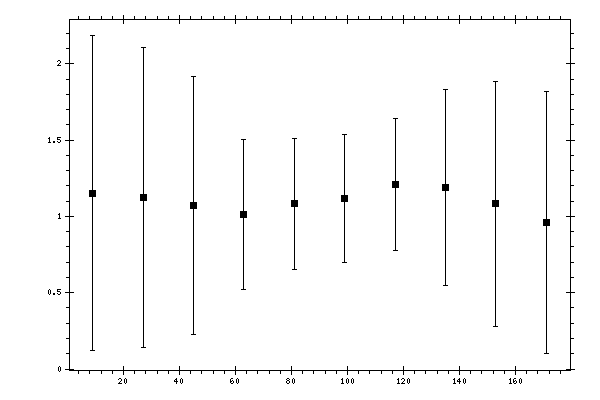

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.1514 | 0.0062 | 0.7279 | 1.0313 |
| 27 | 1.1241 | 0.0126 | 0.6974 | 0.9828 |
| 45 | 1.0701 | 0.028 | 0.5975 | 0.8453 |
| 63 | 1.0113 | 0.036 | 0.4901 | 0.4914 |
| 81 | 1.0817 | 0.0454 | 0.4261 | 0.4285 |
| 99 | 1.1165 | 0.0611 | 0.4156 | 0.4201 |
| 117 | 1.2096 | 0.0613 | 0.4264 | 0.4308 |
| 135 | 1.1892 | 0.0498 | 0.4585 | 0.6423 |
| 153 | 1.0821 | 0.0442 | 0.5165 | 0.8025 |
| 171 | 0.961 | 0.0111 | 0.6053 | 0.8602 |
