Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.425 — 1.45 GeV | |
| Ebeam : | 5.754 GeV |
|

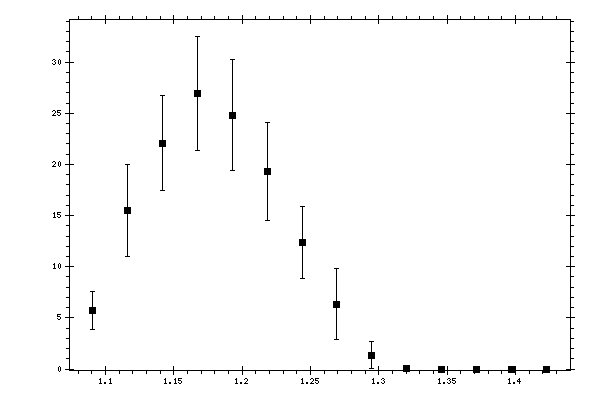

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.090613 | 5.6979 | 0.5331 | 1.2858 | 1.8509 |
| 1.116155 | 15.4881 | 0.9628 | 3.1722 | 4.4866 |
| 1.141697 | 22.0953 | 1.1713 | 4.4818 | 4.6323 |
| 1.167239 | 26.9263 | 1.3354 | 5.4088 | 5.5712 |
| 1.192781 | 24.8117 | 1.073 | 5.2977 | 5.4053 |
| 1.218323 | 19.2788 | 1.0013 | 4.6796 | 4.7855 |
| 1.243865 | 12.3998 | 0.7296 | 3.4402 | 3.5167 |
| 1.269407 | 6.3356 | 0.5206 | 2.4556 | 3.4692 |
| 1.294949 | 1.3464 | 0.0881 | 0.7059 | 1.2971 |
| 1.320491 | 0.0015 | 0.0001 | 0.001 | 0.001 |
| 1.346033 | 0 | 0 | 0 | 0 |
| 1.371575 | 0 | 0 | 0 | 0 |
| 1.397117 | 0 | 0 | 0 | 0 |
| 1.422659 | 0 | 0 | 0 | 0 |
