Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.425 — 1.45 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

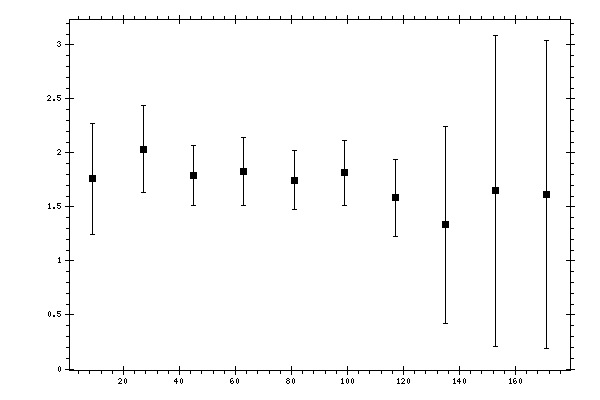

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.7604 | 0.1816 | 0.3651 | 0.5138 |
| 27 | 2.0341 | 0.1282 | 0.2836 | 0.4043 |
| 45 | 1.7916 | 0.1106 | 0.2537 | 0.2768 |
| 63 | 1.829 | 0.1165 | 0.2961 | 0.3182 |
| 81 | 1.7482 | 0.0798 | 0.2586 | 0.2706 |
| 99 | 1.8147 | 0.1032 | 0.2798 | 0.2982 |
| 117 | 1.5849 | 0.0995 | 0.3446 | 0.3587 |
| 135 | 1.3333 | 0.0812 | 0.6107 | 0.9148 |
| 153 | 1.6481 | 0.0043 | 1.029 | 1.4379 |
| 171 | 1.6182 | 0.0049 | 1.0104 | 1.425 |
