Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.425 — 1.45 GeV | |
| Ebeam : | 5.754 GeV |
|

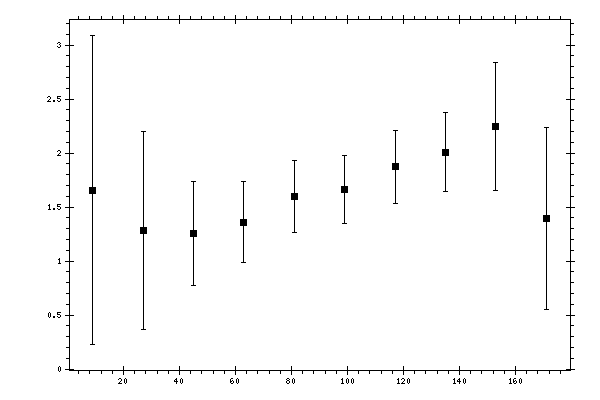

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.6575 | 0.0427 | 0.9826 | 1.4327 |
| 27 | 1.2839 | 0.0558 | 0.6451 | 0.9199 |
| 45 | 1.257 | 0.0778 | 0.4742 | 0.4805 |
| 63 | 1.3617 | 0.0749 | 0.3638 | 0.3715 |
| 81 | 1.5943 | 0.0953 | 0.32 | 0.3339 |
| 99 | 1.6638 | 0.0812 | 0.304 | 0.3147 |
| 117 | 1.8719 | 0.0971 | 0.3206 | 0.335 |
| 135 | 2.0077 | 0.1157 | 0.3454 | 0.3643 |
| 153 | 2.2458 | 0.1268 | 0.4147 | 0.5951 |
| 171 | 1.3925 | 0.0953 | 0.6 | 0.8452 |
