Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.45 — 1.475 GeV | |
| Ebeam : | 5.754 GeV |
|

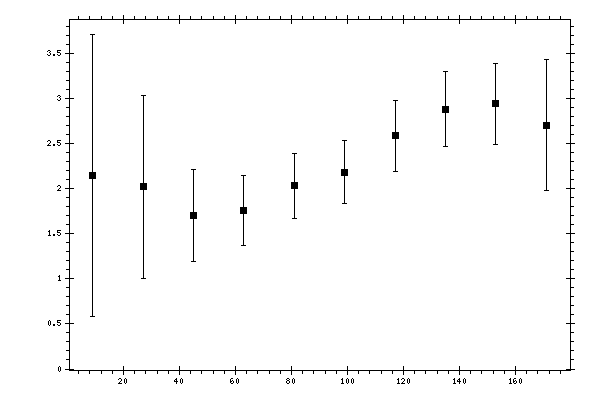

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.1486 | 0.1066 | 1.1023 | 1.5619 |
| 27 | 2.0194 | 0.1227 | 0.7109 | 1.0137 |
| 45 | 1.6999 | 0.12 | 0.497 | 0.5113 |
| 63 | 1.7593 | 0.1002 | 0.3757 | 0.3889 |
| 81 | 2.0281 | 0.1107 | 0.3381 | 0.3557 |
| 99 | 2.1787 | 0.0956 | 0.335 | 0.3484 |
| 117 | 2.5815 | 0.1211 | 0.38 | 0.3988 |
| 135 | 2.879 | 0.1268 | 0.3949 | 0.4148 |
| 153 | 2.9402 | 0.1626 | 0.4169 | 0.4475 |
| 171 | 2.7032 | 0.203 | 0.6975 | 0.7264 |
