Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.475 — 1.5 GeV | |
| Ebeam : | 5.754 GeV |
|

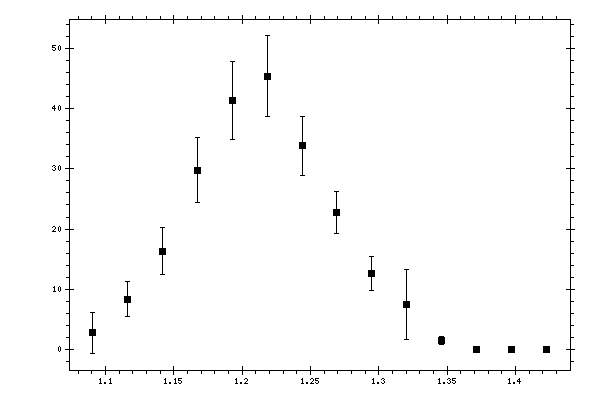

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.090613 | 2.777 | 0.187 | 1.4048 | 3.4189 |
| 1.116155 | 8.342 | 0.5565 | 2.8222 | 2.8766 |
| 1.141697 | 16.3406 | 1.0164 | 3.7564 | 3.8915 |
| 1.167239 | 29.812 | 1.4338 | 5.1505 | 5.3463 |
| 1.192781 | 41.3131 | 1.8892 | 6.2161 | 6.4969 |
| 1.218323 | 45.4371 | 1.8913 | 6.4191 | 6.6919 |
| 1.243865 | 33.8106 | 1.4914 | 4.714 | 4.9443 |
| 1.269407 | 22.6851 | 1.2227 | 3.2868 | 3.5068 |
| 1.294949 | 12.645 | 1.0905 | 1.9912 | 2.8155 |
| 1.320491 | 7.478 | 0.702 | 1.3445 | 5.8584 |
| 1.346033 | 1.509 | 0.1795 | 0.4721 | 0.6729 |
| 1.371575 | 0.0006 | 0.0051 | 0.0004 | 0.0051 |
| 1.397117 | 0 | 0.0023 | 0 | 0 |
| 1.422659 | 0 | 0.0034 | 0 | 0 |
